Structural Steel Rolling Services Serving the Dallas / Fort Worth Area Since 1971
Holloway Structural Steel Rolling Services has been in the business of rolling steel and any other type of metal for over 20 years. We provide structural steel rolling and for use in the aerospace, architectural, industrial, transportation and commercial industries. We provide rolling for angles, square and rectangle tube, channel, t-beams, I-beams, wide flange beams, flat bars, pipe, rails, tracks and any other metal. If it’s steel or any other metal we can roll the items you need.
Our Structural Rolling Equipment
Holloway Structural Steel Rolling Services offers a unique blend of experience and rolling equipment to make sure your job is done precisely to the measurements required. We offer a mandrel system for square and rectangular tubing that limits any distortion when rolling. We have the know how to roll your material correctly and on time. If you need an expedited job we offer break in services that can get your material rolled and you out of a bind.
Holloway Company has recently acquired the Ercolina TB130 Top Bender® tube and pipe bending machine. This machine is ideal for producing consistent quality bends in large pipe, tube, squares, solids and other profiles. It gives us the capability for small bends, multiple bends and creating davit arms.
Structural Rolling Capacities
- Tube (Min.) ¼”, (Max.) 5″
- Pipe (Max.) 4″ Sch. 40
- Centerline Radius (Min.) 2 x Ø, (Max.) 27½”
- Degree of Bend 0-210°
Structural Rolling Capabilities
Equal Angles
Angle Leg Out
Angle Leg In
Total Drop | |
---|---|
1/2″ x 1/2″ x 1/8″ thru 2 1/2″ x 2 1/2″ x 1/2″ | 2’0″ |
3″ x 2 1/2″ x 3/16″ thru 6″ x 6″ x 1″ | 3’0″ |
8″ x 8″ x 1/2″ thru 8″ x 8″ x 1 1/4″ | 8’0″ |
Pipe
Total Drop | |
---|---|
1/2″ thru 2″ | 2’0″ |
2 1/2″ thru 6″ | 3’0″ |
8″ thru 14″ | 8’0″ |
16″ thru 24″, call for requirements
Beams – Easy Way
Wide Flange Easy Way
Total Drop | |
---|---|
S3 & W4 thru S12 & W14 x 38# | 3’0″ |
S15 & W14 x 43# thru W36 x 210# | 8’0″ |
Any beam with 11 3/4″ flange and larger thru W40 x 328# | 16’0″ |
Unequal Angles
Total Drop | |
---|---|
3″ x 2 1/2″ x 3/16″ thru 6″ x 4″ x 3/4″ | 3’0″ |
*7″ x 4″ x 3/8″ thru 9″ x 4″ x 1/2″ | 8’0″ |
*4″ Leg In or 4″ Leg Out | 3’0″ |
Square Tube
Total Drop | |
---|---|
1/2″ x 1/2″ x 14 GA. thru 2″ x 2″ x 3/16″ | 2’0″ |
2 1/2″ x 2 1/2″ x 11 GA. thru 4″ x 4″ x 1/2″ | 3’0″ |
*6″ x 6″ x 1/4 thru 14″ x 14″ x 5/8″ | 8’0″ |
Square tube larger than 14″, call for rolling requirements *Mandrel System available for tight radii, call for tangent req.

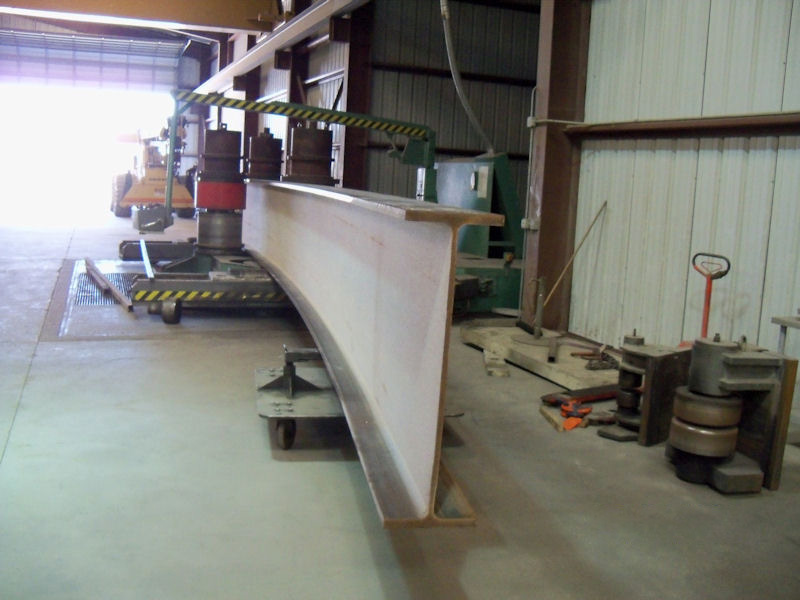

Beams – Hard Way
Wide Flange Hard Way
Total Drop | |
---|---|
S3 & W4 thru W6 x 25# | 3’0″ |
S7 & W8 x 13# thru W14 x 68# | 11’0″ |
*W16 thru W30 x 178# |
*Call for tangent requirements
Flat Bar – Easy Way
Total Drop | |
---|---|
1/8″ x 1/2″ thru 6″ x 40″ |
Call for rolling requirements

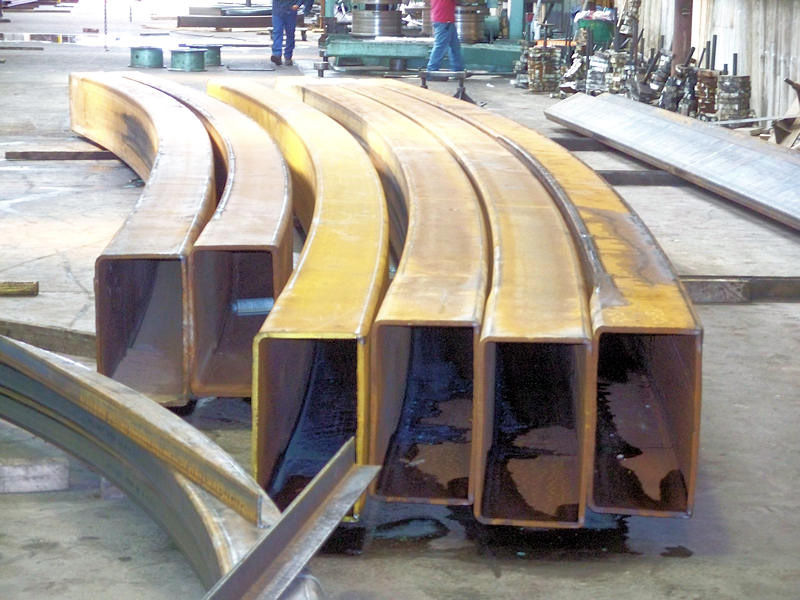

Rectangle Tube – Easy Way
Total Drop | |
---|---|
1/2″ x 3/4″ thru 1/2″ x 2 1/2″ | 2’0″ |
1/2″ x 3″ thru 6″ x 3″ | 3’0″ |
6″ x 4″ thru 20″ x 12″ | 8’0″ |
T-Beams
T-Beam Up/Down
T-Beam Stem Out
T-Beam Stem In
Total Drop | |
---|---|
WT & ST 1 1/4″ thru WT & ST 3″ stem in & out | 2’0″ |
WT & ST 4″ thru WT & ST 6″ stem in & out | 3’0″ |
WT & ST 7″ thru WT & ST 14″ stem in & out | 8’0″ |
3″ thru 6″ flanges w/stem up or down | 3’0″ |
7″ thru 13.5″ flanges w/stem up or down | 8’0″ |
15″ thru 18″ flanges w/stem up or down | 20’0″ |

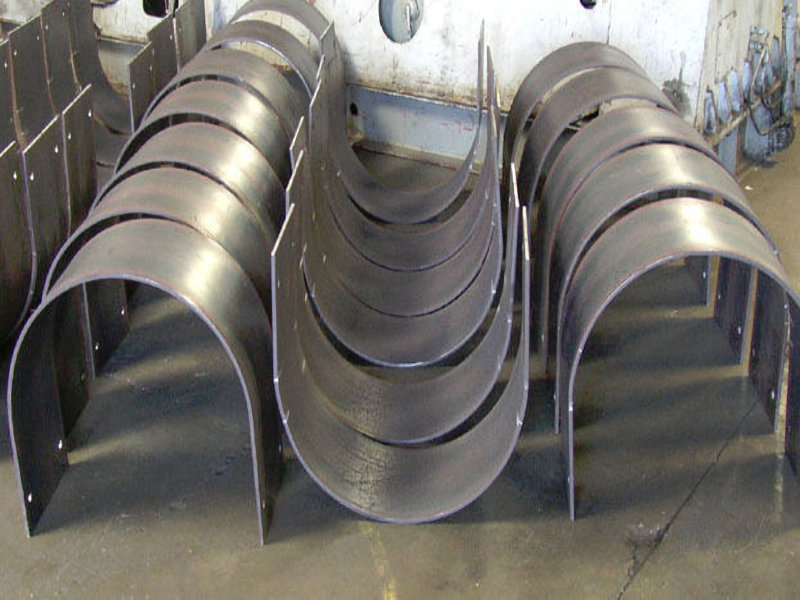

Flat Bar – Hard Way
Total Drop | |
---|---|
1/8″ x 1/2″ thru 3/8″ x 2 1/2″ hard way | 2’0″ |
3/8″ x 3″ thru 1″ x 6″ hard way | 3’0″ |
1″ x 8″ thru 2 3/4″ x 12″ hard way | 8’0″ |
*3″ x 12″ thru 5″ x 20″ hard way |
Call for rolling requirements
Rectangle Tube – Hard Way
Total Drop | |
---|---|
1/2″ x 3/4″ thru 1/2″ x 2 1/2″ | 2’0″ |
1/2″ x 3″ thru 6″ x 2″ x 3/16″ | 3’0″ |
6″ x 3″ thru 14″ x 8″ | 8’0″ |
Tubes larger than 16″, call for tangent requirements
Channel – Hard Way
Total Drop | |
---|---|
C3/4 x 3/8″ thru 2 1/2″ x 5/8″ | 2’0″ |
C3 x 4.1# thru C6 x 13# | 3’0″ |
*C8 x 11.5# thru C10 x 25# | 11’0″ |
C12 x 20.7# and larger, call for rolling requirements
*Tight radii require channel attachment;
Channel – Easy Way
Channel Leg Out
Channel Leg In
Total Drop | |
---|---|
C3 x 4.1# thru C12 & Mc12 | 3’0″ |
C15 x 33.9# thru Mc18 x 58# | 8’0″ |
Square Bar
Total Drop | |
---|---|
5/16″ thru 2″ | 2’0″ |
2 1/4″ thru 3″ | 3’0″ |
3 1/2″ thru 8″ | 8’0″ |
8 1/2″ thru 12″ | 16’0″ |
